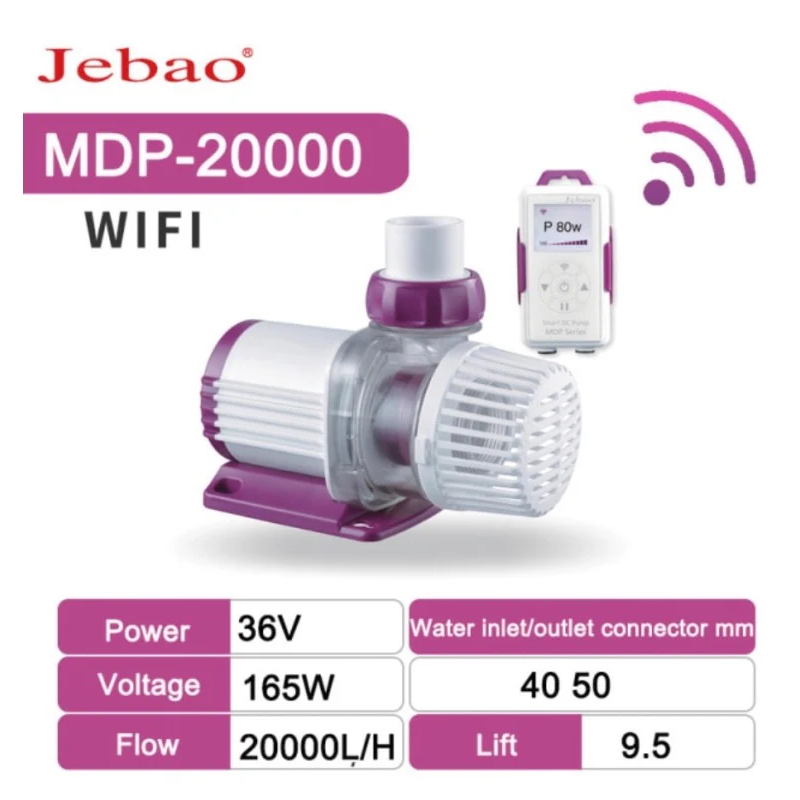

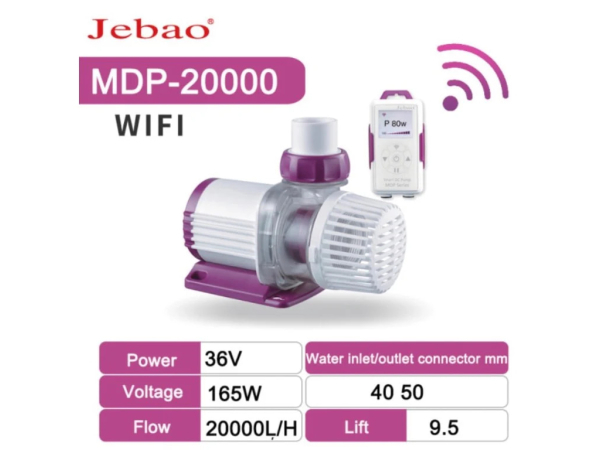

Jecod MDP20000 WIFI includes controller

JEBAO JECOD MDP-20000 return pump for aquarium

The Jebao Jecod MDP-20000 return pump for aquarium is designed to ensure powerful and stable water circulation between the settling tank and your marine aquarium. With a maximum flow rate of 20000 L/h and a controlled electric consumption of 165 Watts, this aquarium return pump guarantees performance, silence, and energy efficiency for demanding reef setups.

Capable of reaching a maximum lift height of 9.5 meters, The JEBAO JECOD MDP-20000 is perfectly suited for large volume aquariums that require significant pressure while maintaining extremely quiet operation thanks to the technology. Sine Wave.

Performance and power of the JEBAO JECOD MDP-20000 return pump

This aquarium return pump has an adjustable flow rate that can reach 20000 L/h, ideal for optimizing the flow between the settling tank and the main aquarium. The maximum lift height of 9.5 meters allows for flexible installation, even in complex technical configurations.

The low voltage motor in DC 24 V ensures high performance while reducing energy consumption. The integrated controller displays real-time electricity consumption, allowing you to precisely adjust the power according to the actual needs of your aquarium.

Remote LCD controller and smart WiFi management

The JEBAO JECOD MDP-20000 pump is equipped with a remote controller with LCD screen Easy to use. You can precisely adjust the flow rate and activate a temporary pause function, which is ideal when feeding fish and corals.

Thanks to the connection Integrated Wi-Fi, The control can also be carried out via a free application installed on a smartphone or tablet. This smart management facilitates the optimization of flow and helps achieve significant energy savings in the long term.

Operating silence and enhanced security

Technology Sine Wave ensures particularly silent operation, essential for an aquarium installed in a living room. The shaft in high-strength ceramic ensure robustness and longevity even with continuous use.

All JEBAO pumps are equipped with a electronic detection IC protecting against power surges. An automatic shut-off system activates in case of dry running, effectively protecting the pump and extending its lifespan.

Technical specifications

Package contents

The JEBAO JECOD MDP-20000 aquarium return pump comes complete and ready to use with:

- JEBAO JECOD MDP-20000 Pump
- Remote LCD controller
- Inlet fittings Ø 25 / 32 / 40 mm
- Outlet fittings Ø 25 / 32 / 40 mm
- Protective grid for the rotor
- Wiring and power supply
- User manual

Installation tips for a marine aquarium

To ensure optimal operation of your JEBAO JECOD MDP-20000 return pump, it is recommended to use silicone hoses to improve durability and limit vibrations. Make sure to position the pump in a stable area of the sump and regularly check the cleanliness of the rotor to prevent sediment buildup.

This aquarium return pump offers a reliable, quiet, and efficient solution for all marine aquarists seeking power, precision, and safety in their technical setup.
