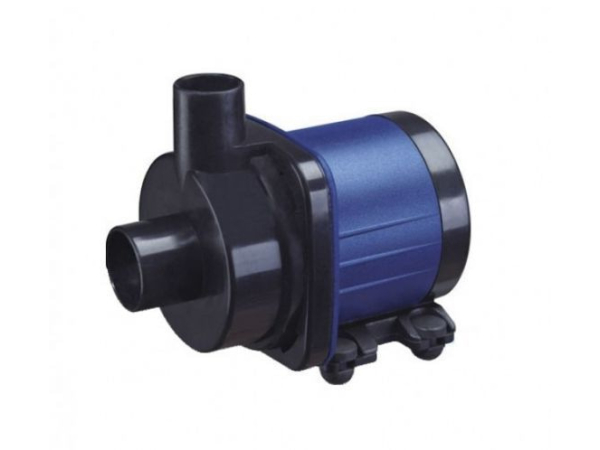

Jecod DCS-1200 Series Controller 24v

Jecod DCS-1200 Return Pump – DCS Series

The Jecod DCS-1200 pump is part of the DCS series, a range of return pumps known for their reliability and excellent energy efficiency. Compared to pumps with equivalent performance, the DCS series allows for up to 50% energy savings on average.

This pump operates on 24 V direct current and comes with a controller that allows precise flow adjustment. It is designed for internal use, fully submerged.

Advantages

• Super silent DC pump
• Up to 50% energy savings
• Adjustable flow via controller
• 8 levels of flow regulation
• Feed mode with automatic 10-minute shutdown
• Wear-resistant ceramic shaft
• Motor protection in case of rotor blockage
• No copper components, compatible with all aquariums
• Usable in both freshwater and saltwater

Technical Specifications

• Maximum flow rate: 1200 L/h
• Maximum lift height: 1.5 m
• Power: 20 W
• Input voltage: 100–240 V, 50/60 Hz
• Output voltage: 24 V DC
• Protection rating: IPX8
• Cable length: 1.5 m
• Pump dimensions: approximately 100 x 65 x 95 mm
• Supplied fittings for flexible hoses: 12/16 mm, 16/22 mm, 19/27 mm

In France, as the electrical network voltage can vary between 220 V and 240 V, the use of an EATON 450 UPS is recommended to avoid any flow variation related to voltage fluctuations.
