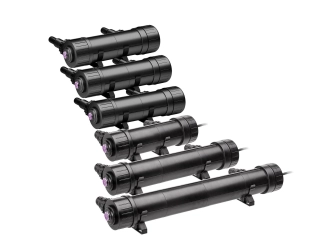

55 Watt UV-C Sterilizer Aqua Medic Helix Max 2.0

UV-C Sterilizer Aqua Medic Helix Max 2.0 – 55 Watts for Aquarium and Pond

The Helix Max 2.0 55 W Aqua Medic is a high-power UV-C sterilizer designed for marine aquariums, freshwater aquariums, and large capacity ponds. Thanks to its quartz tube inner spiral and high-frequency electronic ballast, it provides prolonged UV exposure, ensuring maximum water disinfection.

Recommended Capacities

• Marine aquarium: up to 1500 liters (recommended flow rate: 1500 l/h)
• Freshwater aquarium: up to 5000 liters (recommended flow rate: 1500 l/h)
• Outdoor pond: up to 75000 liters (recommended flow rate: 15000 l/h)

Main Features

• UV Power: 55 W – UV-C output: 18 W
• Lamp Type: PL-L 55 W (replaceable)
• Spiral quartz tube: for prolonged UV contact and better efficiency
• 360° adjustable inlet: for flexible and space-saving installation
• Easy cleaning: thanks to the quick disassembly of the inner spiral
• Viewing window: for quick and safe monitoring
• Electronic ballast: high frequency for consistent performance and long lifespan
• Included fittings: 20 / 25 / 30 / 38 mm
• Power cable: length 3.5 m

Benefits for Your Aquatic System

The 55 W UV-C sterilizer effectively eliminates suspended algae, germs, parasites, and pathogens responsible for water issues. It helps maintain a healthy, stable, and visually clear environment in the most demanding installations.

Technical Specifications

Model: Helix Max 2.0 – 55 W
UV-C Power: 18 W/UVC
Lamp Type: PL-L 55 W
Maximum Pressure: 0.4 bar
Max Water Column: 2 m
Connection: 220–240 V / 50–60 Hz
Case Dimensions: 695 mm x Ø 110 mm (excluding fittings)
Cable Length: 3.5 m
Supplied Fittings: 20 / 25 / 30 / 38 mm

Usage Tips

Install the sterilizer on a filtration line or a dedicated pump with an appropriate flow rate. Regularly clean the quartz tube and replace the PL-L 55 W lamp every 6 to 12 months to ensure consistent efficiency. Perfectly suited for professional installations and demanding aquarists.
