90-degree PVC HP elbow F/F

90-Degree High-Pressure PVC Elbow Female/Female – Reliable Connection for Aquariums

The 90-degree high-pressure PVC elbow female/female is designed to ensure a secure and durable connection in aquarium piping systems. With its 90° angle, it allows for changing the direction of water flow while maintaining optimal pressure.

Main Features

• Material: Food-grade high-pressure PVC
• Angle: 90 degrees
• Connection: Female/Female for gluing
• Usage: Suitable for freshwater and saltwater systems

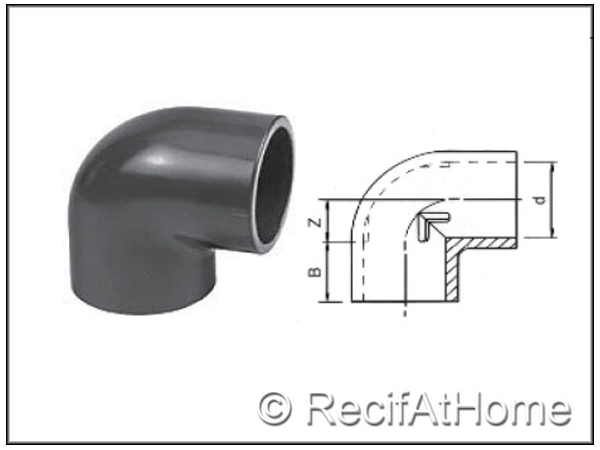

Available Dimensions

• Diameter 10 mm: z = 6 mm, B = 12 mm
• Diameter 12 mm: z = 7 mm, B = 12 mm
• Diameter 16 mm: z = 9 mm, B = 14 mm
• Diameter 20 mm: z = 12 mm, B = 16 mm
• Diameter 25 mm: z = 14 mm, B = 19 mm
• Diameter 32 mm: z = 18 mm, B = 22 mm
• Diameter 40 mm: z = 22 mm, B = 26 mm
• Diameter 50 mm: z = 18 mm, B = 31 mm
• Diameter 63 mm: z = 33 mm, B = 38 mm

Benefits for Your Installation

• Secure Installation: ensures a perfect seal between PVC pipes
• Adaptability: compatible with various internal and external filtration systems
• Easy Maintenance: easy disassembly for cleaning or replacement
• Durability: robust material for long lifespan

Installation Tips

For optimal installation, clean and degrease the surfaces to be glued. Apply a specific high-pressure PVC glue to both parts to be assembled. Insert the pipe into the elbow until it stops and maintain pressure for a few seconds. Allow to dry according to the glue manufacturer's recommendations before putting into service.
