High-Pressure PVC Flexible Hose Connector Male to Glue

(3/5) out of 1 total ratings
Read the reviews

High-Pressure Male PVC Flexible Hose Connector – Reliable Connection for Aquariums

The high-pressure male PVC flexible hose connector is designed to ensure a secure and durable connection between rigid and flexible pipes in aquarium plumbing systems. Its design allows for easy connection of a flexible hose to a rigid PVC installation while maintaining optimal pressure.

Main Features

• Material: Food-grade high-pressure PVC
• Connection: Male end to glue on one side, barbed end for flexible hose on the other
• Usage: Suitable for freshwater and saltwater systems

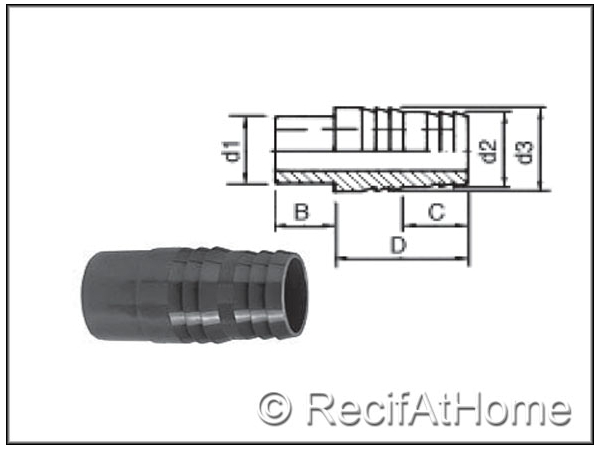

Available Sizes

• Diameter 10 mm: d1 = 10 mm, d3 = 12 mm, B = 16 mm, D = 31 mm
• Diameter 12 mm: d1 = 12 mm, d3 = 14 mm, B = 16 mm, D = 36 mm
• Diameter 16 mm: d1 = 16 mm, d3 = 18 mm, B = 18 mm, D = 40 mm
• Diameter 20 mm: d1 = 20 mm, d3 = 20 mm, B = 20 mm, D = 44 mm
• Diameter 25 mm: d1 = 25 mm, d3 = 24 mm, B = 24 mm, D = 54 mm
• Diameter 32 mm: d1 = 32 mm, d3 = 28 mm, B = 28 mm, D = 63 mm
• Diameter 40 mm: d1 = 40 mm, d3 = 32 mm, B = 32 mm, D = 72 mm
• Diameter 50 mm: d1 = 50 mm, d3 = 35 mm, B = 35 mm, D = 80 mm
• Diameter 63 mm: d1 = 63 mm, d3 = 40 mm, B = 40 mm, D = 90 mm

Benefits for Your Installation

• Secure Installation: ensures a perfect seal between rigid and flexible PVC pipes
• Adaptability: compatible with various internal and external filtration systems
• Easy Maintenance: easy disassembly for cleaning or replacement
• Durability: robust material for long-lasting performance

Installation Tips

For optimal installation, clean and degrease the surfaces to be glued. Apply a specific high-pressure PVC glue to the male end to be glued. Insert the rigid pipe into the connector up to the stop and maintain pressure for a few seconds. For the barbed side, insert the flexible hose, heating it slightly if necessary to facilitate insertion. Use a hose clamp to ensure a perfect seal. Allow to dry according to the glue manufacturer's recommendations before putting into service.
