SilverBridge for Silvermoon X GNC

SilverBridge for Silvermoon X GNC: aquarium mounting bracket

The SilverBridge GNC is a mounting kit designed to install a Silvermoon LED bar directly on the edges of the aquarium. It provides a simple and discreet solution for positioning a Silvermoon X light bar above the water, without using a ceiling-mounted suspension system.

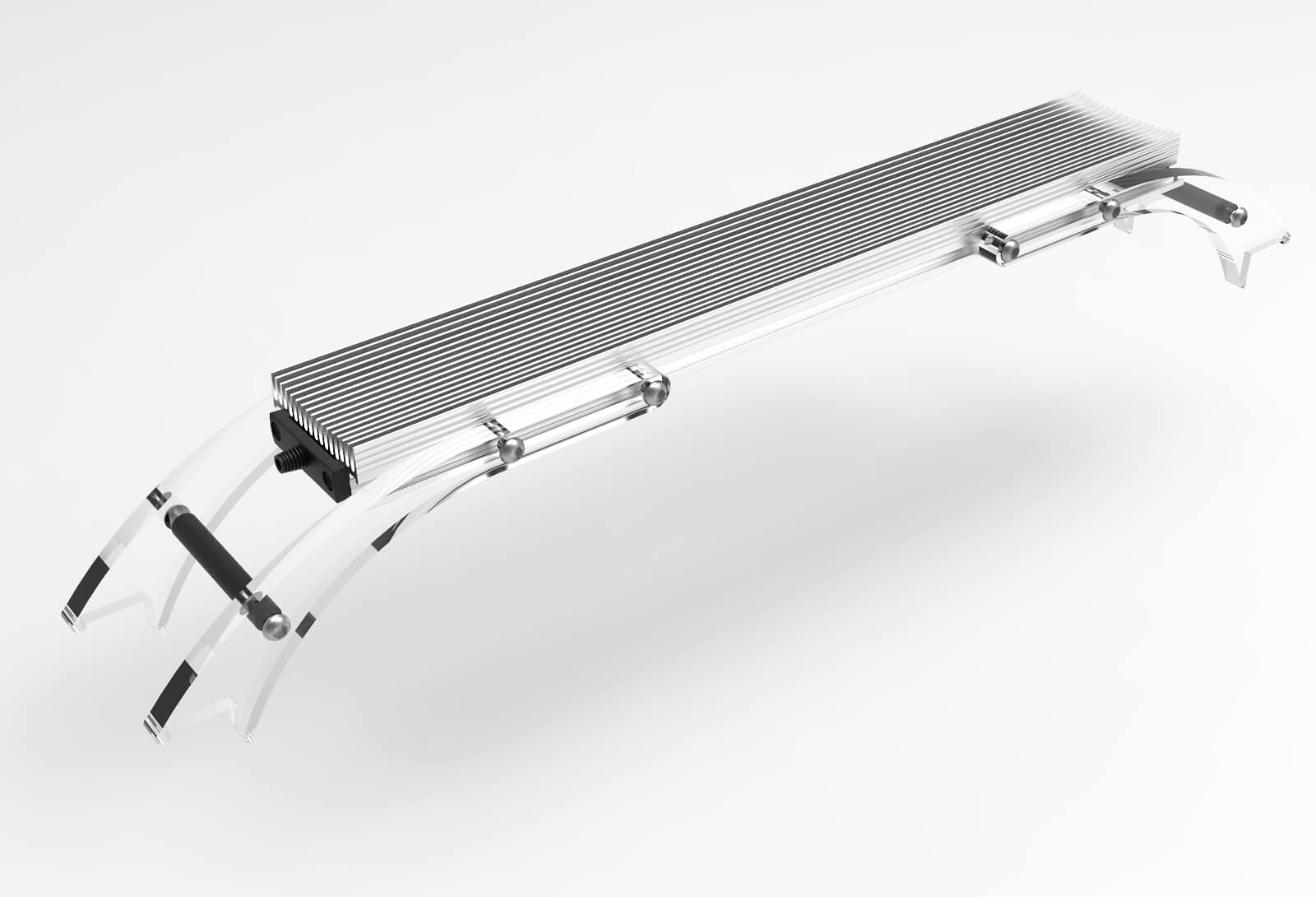

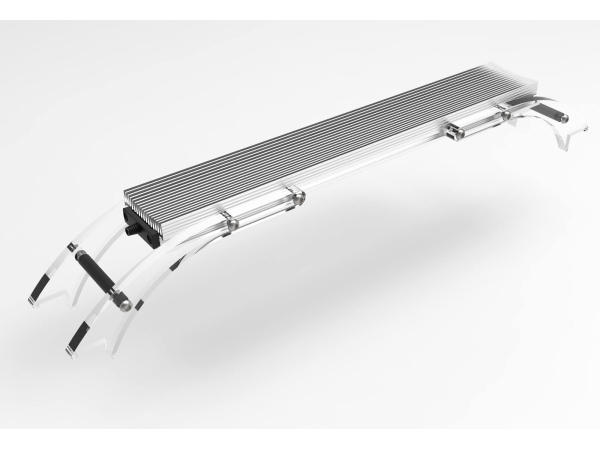

The SilverBridge consists of transparent acrylic supports combined with stainless steel hardware. Once assembled, the supports slide into the side grooves of the Silvermoon bar to hold the lighting above the aquarium.

Thanks to its transparent appearance, the SilverBridge support preserves the slim, modern look of GNC LED bars. It helps minimize the visual impact of the mounting system while ensuring stable positioning of the Silvermoon X on the aquarium edges.

A support specially designed for Silvermoon X bars

The SilverBridge is one of the optional mounting systems offered by GNC for the Silvermoon X range. It allows the LED bar to be placed above the aquarium while keeping the water surface easily accessible.

The supports attach directly into the grooves on the sides of the bar. Their position can be adjusted to align the support points with the edges of the aquarium.

This design avoids adding a bulky frame around the bar. The Silvermoon X therefore remains visually light, even when installed above an open aquarium.

Made from transparent acrylic and stainless steel

The main elements of the SilverBridge are made from polymethyl methacrylate, also known as PMMA or acrylic. This material is valued for its transparency, rigidity, and good stability in an aquatic environment.

The transparent supports blend easily into the setup and allow the Silvermoon X LED bar to remain the visual centerpiece. This discreet finish is especially suitable for open aquariums and modern installations.

The stainless steel hardware completes the support structure. It helps hold the assembled components securely while being suitable for use near a marine aquarium.

Compatible with all Silvermoon sizes

The SilverBridge GNC is compatible with all sizes in the Silvermoon range. It can therefore be used with the various lengths of Silvermoon X Marine or Fresh Water depending on the aquarium setup.

It can notably be used with the Silvermoon X-350, Silvermoon X-600, Silvermoon X-900, Silvermoon X-1200, and Silvermoon X-1500 models.

The adjustable position of the supports makes it possible to adapt the support points to the length of the bar and the available width between the two aquarium edges.

Main features of the SilverBridge GNC

What’s included in the SilverBridge kit

The kit includes the various components needed to assemble and attach the support to the Silvermoon bar:

How do you install the SilverBridge on a Silvermoon X?

Start by assembling the different acrylic parts using the supplied hardware. The four transparent pieces form the two supports that will rest on the aquarium edges.

Then insert the nuts provided for this purpose into the side grooves of the Silvermoon X bar. Slide the acrylic supports along these grooves until the spacing matches the aquarium dimensions.

Position each support so that its fixed stop rests properly against the aquarium edge. Once the position is set, gradually tighten the fasteners to secure the supports to the bar.

The Silvermoon X can then be placed on the aquarium edges. Before powering on, check that both sides are correctly positioned and that the bar remains perfectly stable.

An installation without ceiling suspension

The SilverBridge is especially suitable when installing a suspension cable is not desired or cannot be done. The bar rests directly on the aquarium, avoiding the need to drill the ceiling or install an additional structure above the cabinet.

This solution is also practical when the aquarium needs to be moved or when the user wants an installation that can be easily removed. The bar and its supports can be removed together during major work in the aquarium.

Positioning on the edges also helps maintain a consistent height between the Silvermoon X and the water surface.

A discreet support for open aquariums

The transparent acrylic supports minimize their visual presence around the aquarium. This helps preserve the slim design of the Silvermoon X and the visibility of the reef décor.

The SilverBridge is particularly suitable for open aquariums, where the LED bar and its mounting system remain visible. The combination of transparent PMMA and stainless steel provides a clean, modern look.

The compact design of the system also leaves much of the aquarium edge accessible for maintenance, feeding, and routine tasks.

Safety tips before installation

Before installation, make sure the aquarium edges are clean, stable, and able to support the brackets. No salt deposits, grains of sand, or hard particles should remain trapped between the acrylic and the glass.

Ensure that the supports rest properly on each side and that the weight of the bar is evenly distributed. The Silvermoon X must not be installed in an overhanging position or supported by only one point.

The power cables should form a downward loop before reaching the outlet to prevent water from running along the cable to the electrical connection.

Check the screw tightness regularly, especially after the first installation or after moving the bar.

Maintaining the SilverBridge support

The acrylic supports can be cleaned with a soft, slightly damp cloth. This helps remove salt marks and deposits that could gradually reduce their transparency.

Do not use abrasive sponges, metal blades, or harsh products that could scratch or weaken the PMMA. For persistent deposits, remove the support from the aquarium before cleaning.

The stainless steel hardware should also be checked regularly. Remove salt deposits and make sure the fastening elements remain clean and properly tightened.

Why choose the SilverBridge for Silvermoon X GNC?

The SilverBridge for Silvermoon X GNC offers a simple solution for placing a Silvermoon bar directly on the aquarium edges. It avoids ceiling suspension installation while maintaining a stable and adjustable position.

Its transparent PMMA supports preserve the minimalist design of the bar. The stainless steel hardware and the side-groove mounting system ensure a cohesive integration with GNC lighting design.

Compatible with all Silvermoon sizes, discreet, and easy to remove, the SilverBridge is a practical accessory for completing the installation of a Silvermoon X above a marine, reef, or freshwater aquarium.
