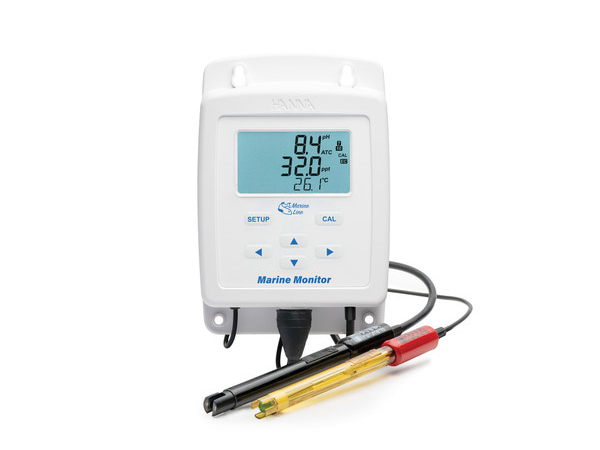

The HI981520-02 measures and displays conductivity, pH, and temperature for applications such as seawater, saltwater aquariums, and aquaculture. Parameters can be configured with alarms in high or low value mode, and the display is on a readable LCD screen.
The salinity of seawater can be expressed in g/L (ppt), in practical salinity units (PSU), or in specific gravity (S.G.). The probes attach to the back of the aquarium using suction cups and are suitable for continuous measurement.
Simultaneous display of pH, salinity, and temperature
Configurable high and low alarms for each parameter
Acoustic signal when an alarm is triggered
Automatic temperature compensation
pH calibration at 1 or 2 points
Conductivity calibration at 1 point
Easy installation with adhesive or screw mounting
Probes suitable for continuous measurement in marine aquariums
The probes attach using suction cups with clips and can be positioned at the back of the aquarium. Each probe has a 200 cm cable allowing the monitor installation to be remote.
The system can be calibrated at one or two points for pH (pH 7.01 and 10.01 buffers) and at one point for conductivity at 35.00 ppt. Regular calibration is recommended to maintain measurement accuracy.
| Displayed Parameters | pH, salinity (ppt, PSU, S.G.), temperature |
| pH | Range 0.0 to 14.0; resolution 0.1; accuracy ±0.2; automatic calibration at pH 7.01 and 10.01 |
| Salinity in ppt (g/L) | Range 0.0 to 70.0; resolution 0.1; accuracy ±1.0 between 0.0 and 40.0, then ±2.0 between 40.0 and 70.0; automatic calibration at 35.00 |
| Salinity in PSU | Range 0.0 to 70.0; resolution 0.1; accuracy ±1.0 between 0.0 and 40.0, then ±2.0 between 40.0 and 70.0 |
| Specific Gravity (S.G.) | Range 1.000 to 1.041; resolution 0.001; accuracy ±0.001 |
| Housing | IP65 |
| Monitor Dimensions | 12.5 x 18.5 x 3.8 cm |
| Weight | 0.3 kg |
| pH Electrode HI1286 | Double junction; BNC connector; 200 cm cable; length 16 cm; diameter 1.2 cm |
| EC and Temperature Probe | Graphite electrode; AISI 316 stainless steel temperature sensor; 200 cm cable; length 15.5 cm; diameter 1.25 cm |
| Monitor | HI981520-02 |
| pH Electrode | HI1286 |
| Probe | Fixed conductivity and temperature probe |
| pH Buffer Solutions | pH 7.01 (2 sachets of 20 ml) and pH 10.01 (2 sachets of 20 ml) |
| Salinity Standard Solution | 35.00 ppt (2 sachets of 20 ml) |
| Electrode Cleaning Solution | 2 sachets of 20 ml |
| Fixings | 2 suction cups with clip, 2 self-adhesive mounts |
| Power Supply | 12 V power adapter |
| Documents | Probe quality certificate, quick start guide |
Keep the original packaging and supplied accessories. For optimal operation, use fresh calibration solutions and regularly maintain the pH electrode and conductivity probe.
