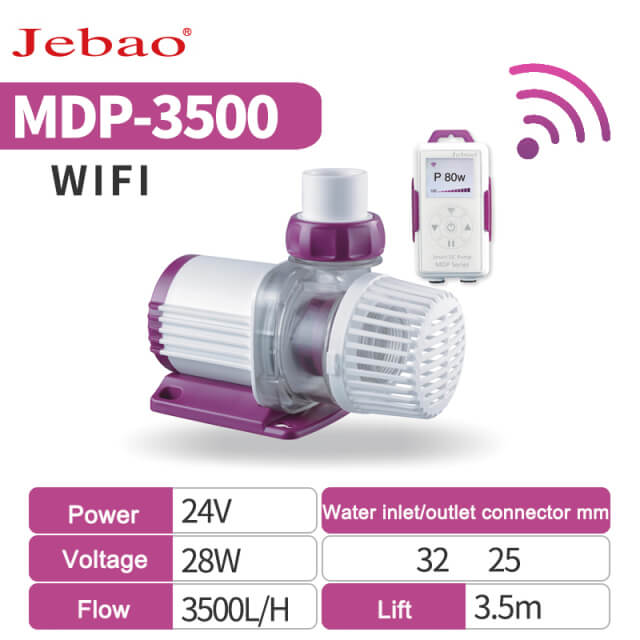

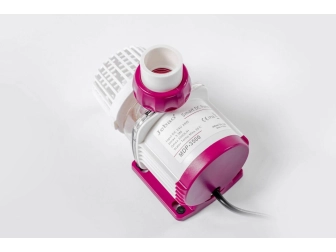

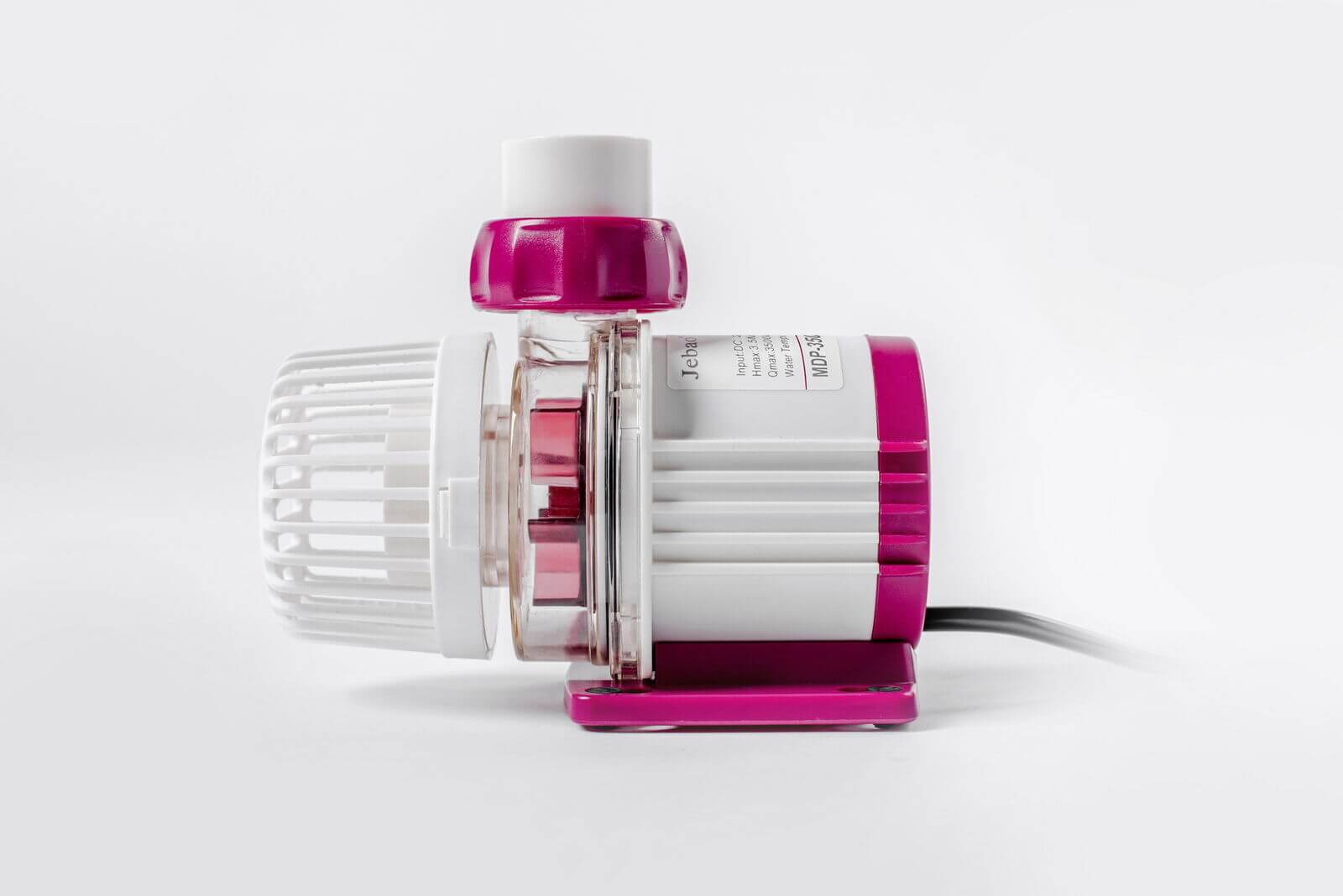

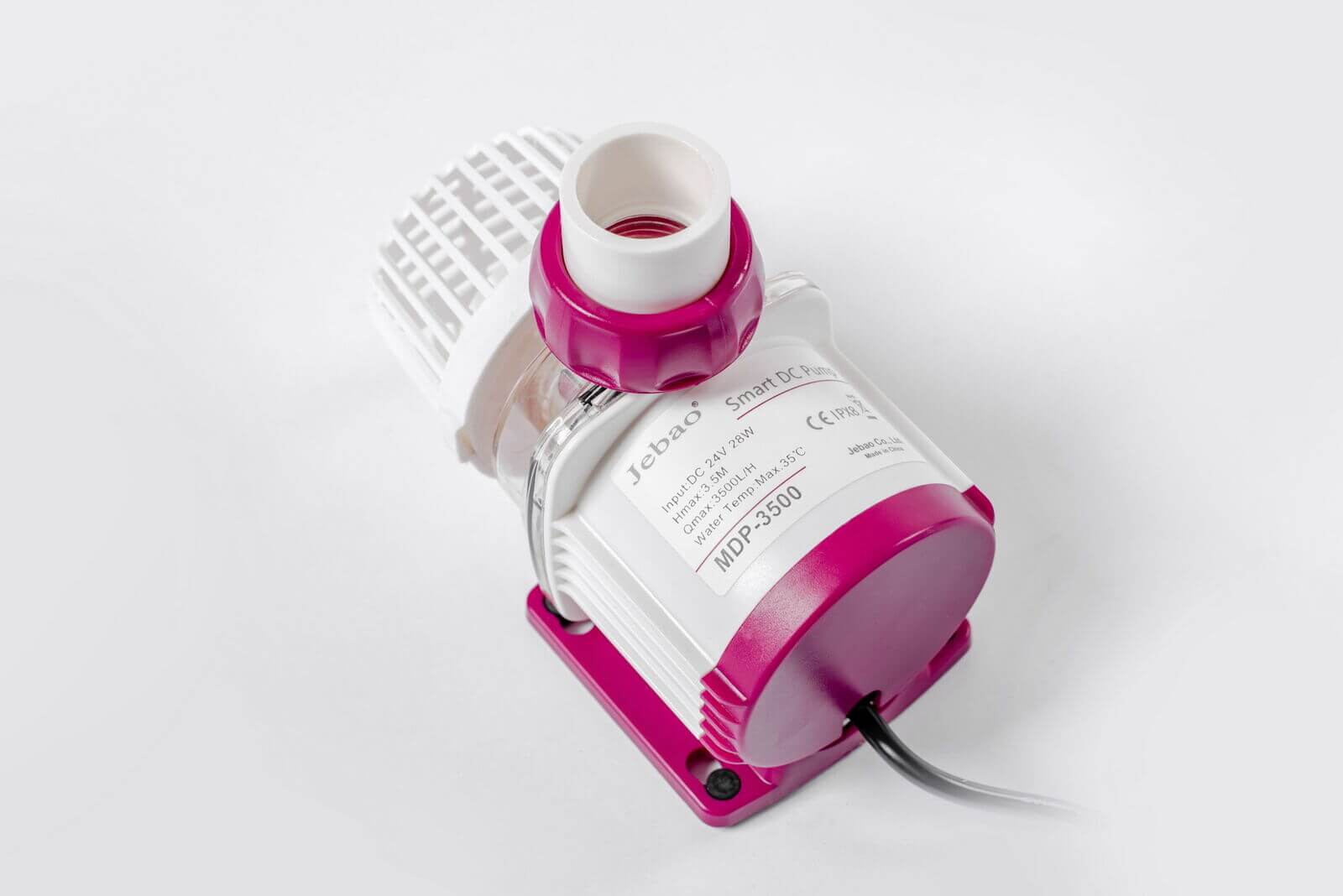

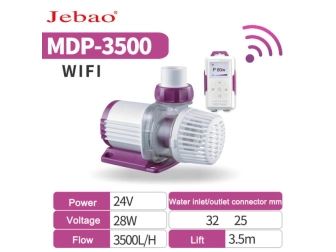

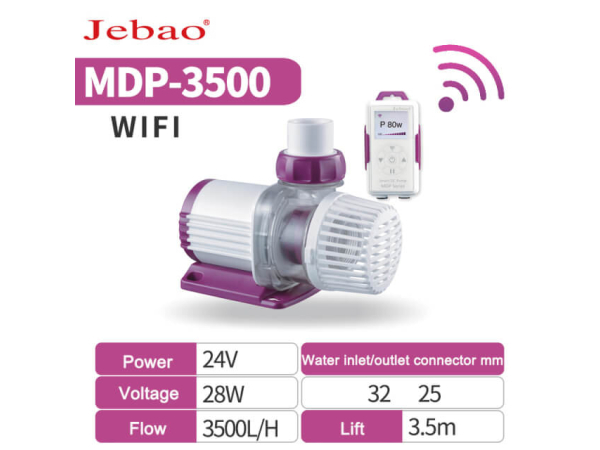

Jecod MDP-3500 Wi-Fi Return Pump

The Jecod MDP-3500 Wi-Fi return pump can be controlled via an Android or Apple app, or directly using its manual controller with an LCD screen. No electronic components are integrated into the body of the pump, which improves its reliability and longevity.

The MDP Wi-Fi range is part of the new generation of Jecod pumps, combining intelligent control, optimized hydraulic performance, and reduced electrical consumption.

Technology and Operation

The sine wave control technology ensures particularly quiet operation. The rotor benefits from an optimized design and a wear-resistant ceramic shaft, ensuring reliable long-term operation.

The pump features IC electronic protection that automatically cuts off power in case of dry running.

Wi-Fi Controller with LCD Screen

• Precise speed adjustment between 30% and 100%
• Digital display of electrical consumption
• Control via mobile app or manual controller
• 2.4 GHz Wi-Fi system
• On/off functions and feed mode
• Programming of multiple daily flow rates
• Removable mounting support for the controller

Usage and Compatibility

The pump can be used submerged or in an external installation. It is compatible with both freshwater and marine aquariums. Its IPX8 protection ensures safe usage.

In France, where electrical voltage varies between 220 V and 240 V, the use of an EATON 450 inverter is recommended to ensure optimal flow stability.

Technical Specifications

Control via App

The pump is fully controllable from the Jebao Aqua mobile app. A program mode allows for setting different power levels over a 24-hour period, including phases of reduced flow or pauses for feeding.
