The Red Dragon 3 ECO 25 W is an adjustable DC pump developed by Royal Exclusiv. It is designed to ensure reliable and silent water circulation in reef systems, while offering precise flow control thanks to its electronic controller.
Maximum Power: 25 W

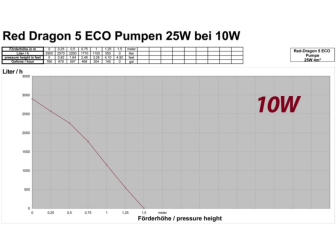

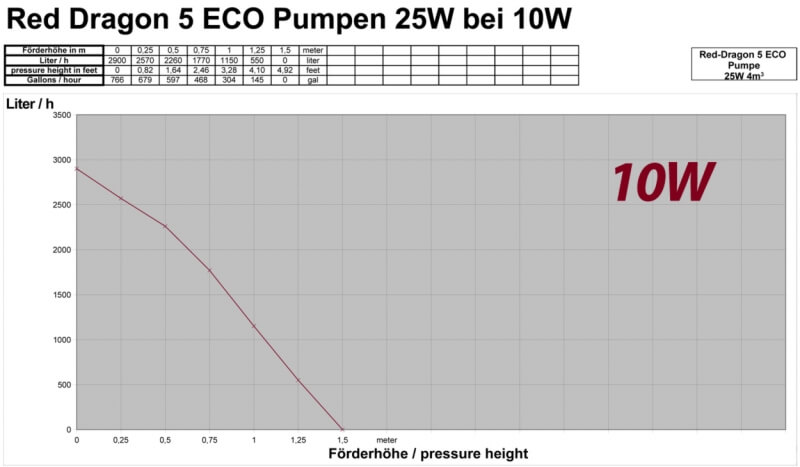

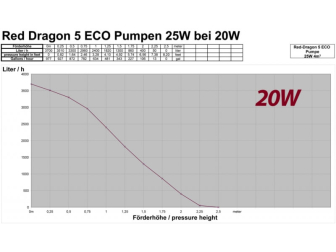

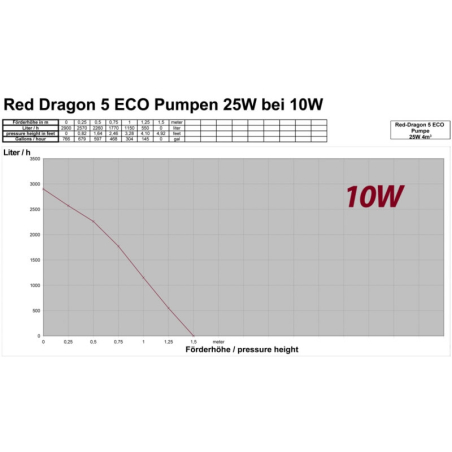

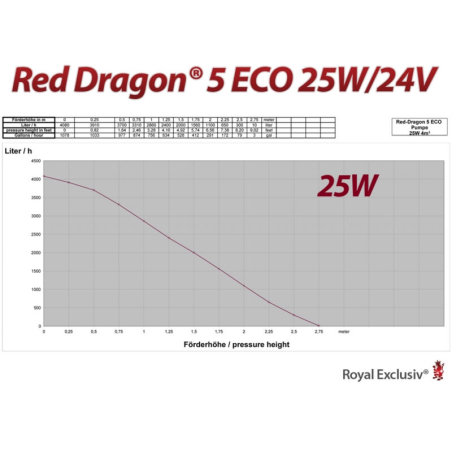

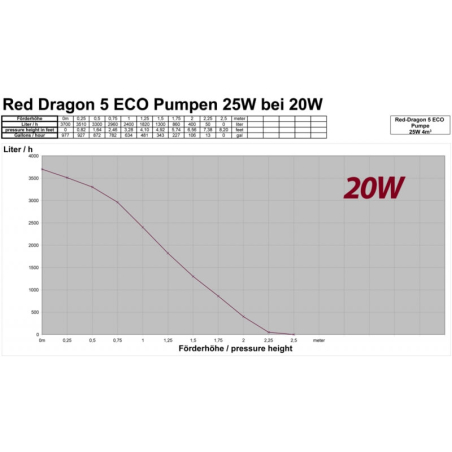

Maximum Flow Rate: 4 m³/h (1056 GPH)
Maximum Head Height: 2.5 m
Technology: adjustable brushless DC motor
Power Adjustment: in 2 W increments
Adjustment Range: 2 W to 25 W
Inlet: 32 mm (1")
Outlet: 25 mm (0.75")
| Feature | Value |
|---|---|
| Model | Red Dragon 3 ECO 25 W |

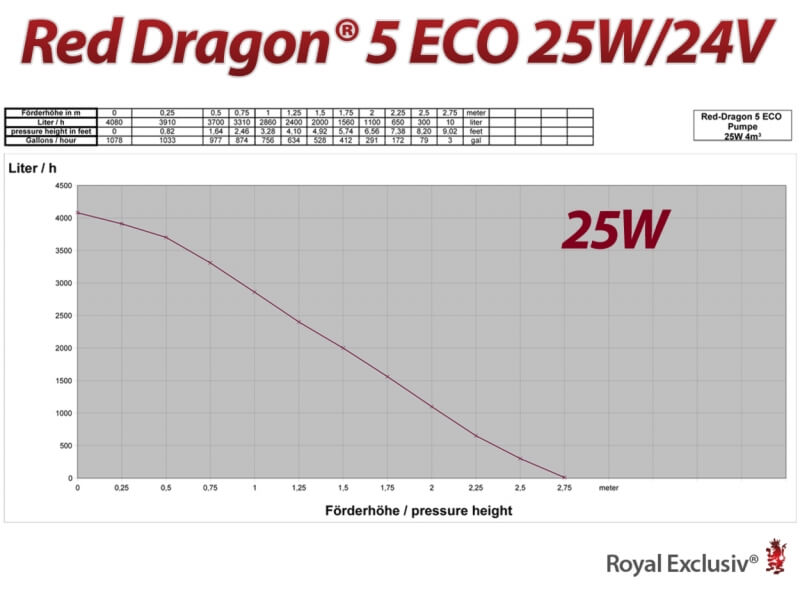

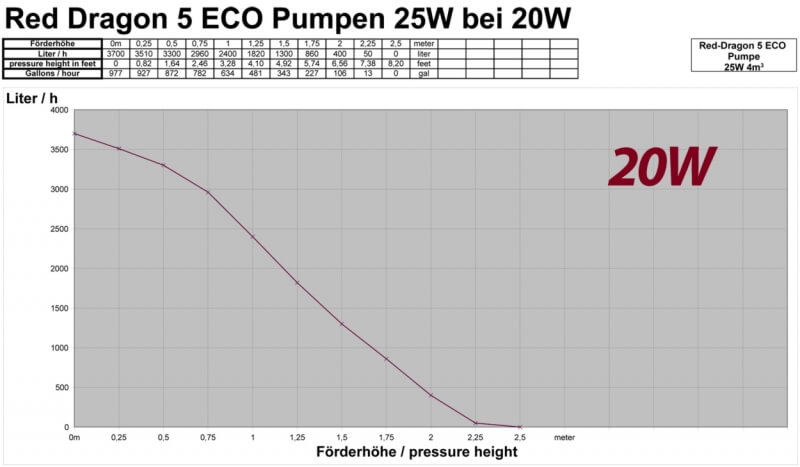

| Maximum Flow Rate | 4.0 m³/h (1056 GPH) |
| Head Height | 2.5 m |
| Maximum Power | 25 W |
| Power Adjustment | in 2 W increments (2 W to 25 W) |
| Supply Voltage | 100–240 V |
| Frequency | 50–60 Hz |
| Technology | 24 V DC |
| Pump Protection Rating | IP68 |
| Controller Protection Rating | IP66 |
| Pump Weight Without Controller | 1.0 kg |
| Component | Dimensions |
|---|---|
| Pump | 100 mm width / 170 mm length / 155 mm height |
| Controller | 30 mm width / 95 mm length / 105 mm height |
| Intake Side Height | 60 mm (center) |

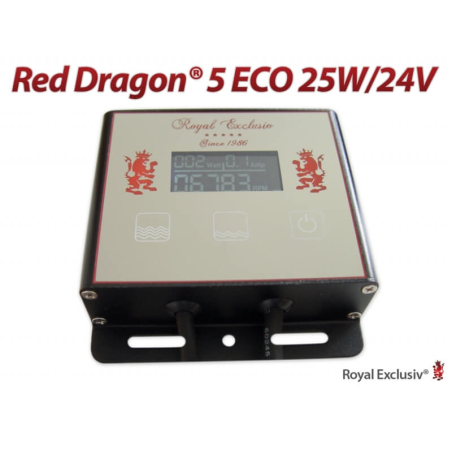

The Red Dragon 3 ECO pump uses a brushless DC motor allowing for silent operation and precise flow regulation. The electronic controller displays the power consumption as well as the pump's rotation speed.

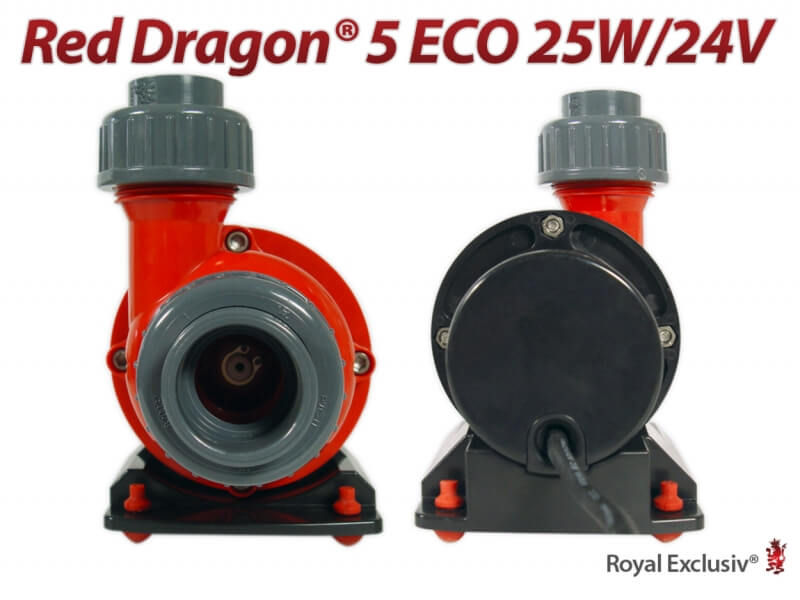

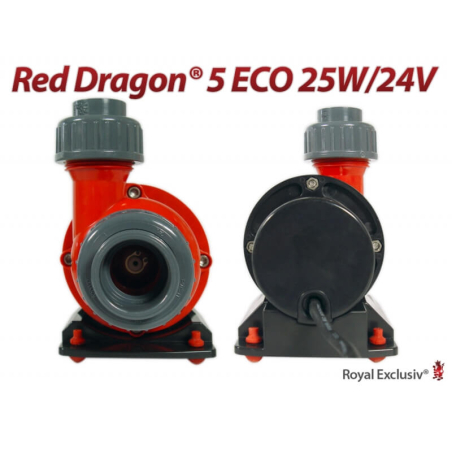

The pump can be used for circulation or water return in reef aquariums. It has a 32 mm inlet and a 25 mm outlet allowing for simple integration into most setups.
Red Dragon 3 ECO 25 W Pump

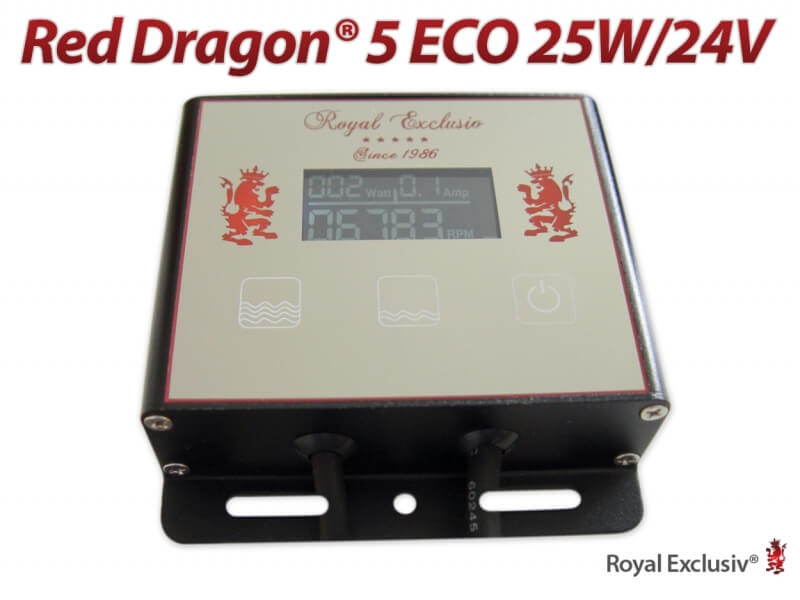

Electronic Controller
Power Supply Unit
Connection Cables
User Manual
Regular cleaning of the rotor and pump body helps maintain performance and prevent the accumulation of limescale deposits.
