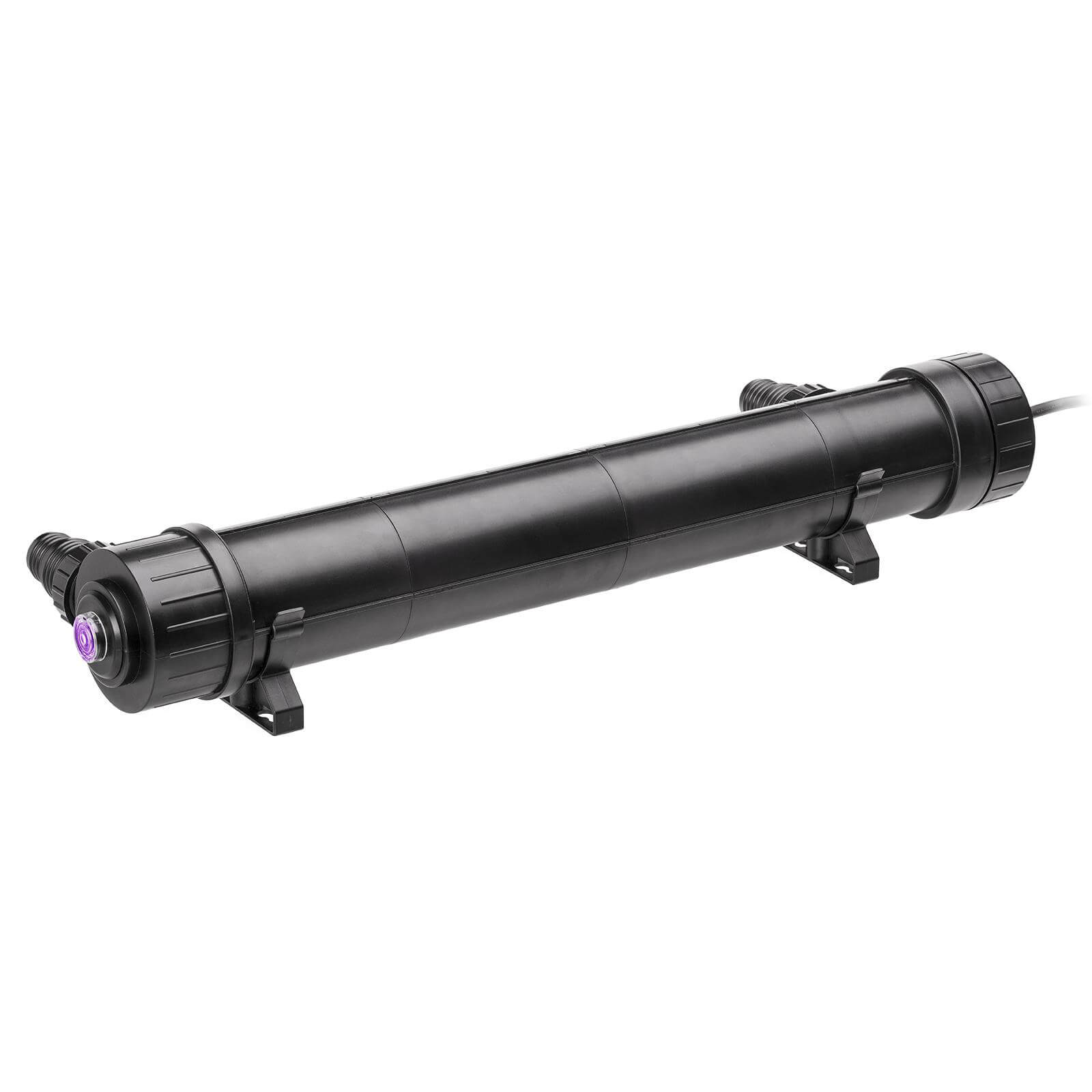

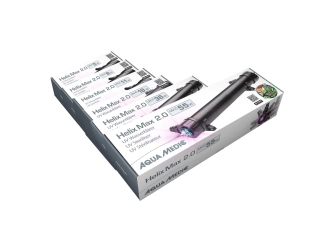

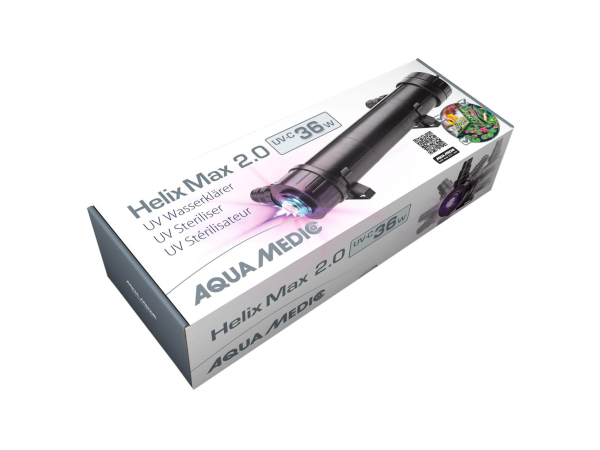

UV-C Sterilizer Aqua Medic Helix Max 2.0 – 36 Watts for Aquariums and Ponds

The UV-C Sterilizer Helix Max 2.0 – 36 W Aqua Medic is a powerful solution to ensure clear and pathogen-free water in marine, freshwater aquariums, and large outdoor ponds. It uses a quartz spiral with long UV exposure and a high-frequency electronic ballast for maximum and lasting efficiency.

Recommended Capacities

• Marine Aquarium: up to 1000 liters (recommended flow rate: 1000 l/h)
• Freshwater Aquarium: up to 3000 liters (recommended flow rate: 1500 l/h)
• Outdoor Pond: up to 40000 liters (recommended flow rate: 10000 l/h)

Main Features

• Power: 36 W – UV-C efficiency: 12 W/UVC
• Lamp: PL-L 36 W (replaceable)

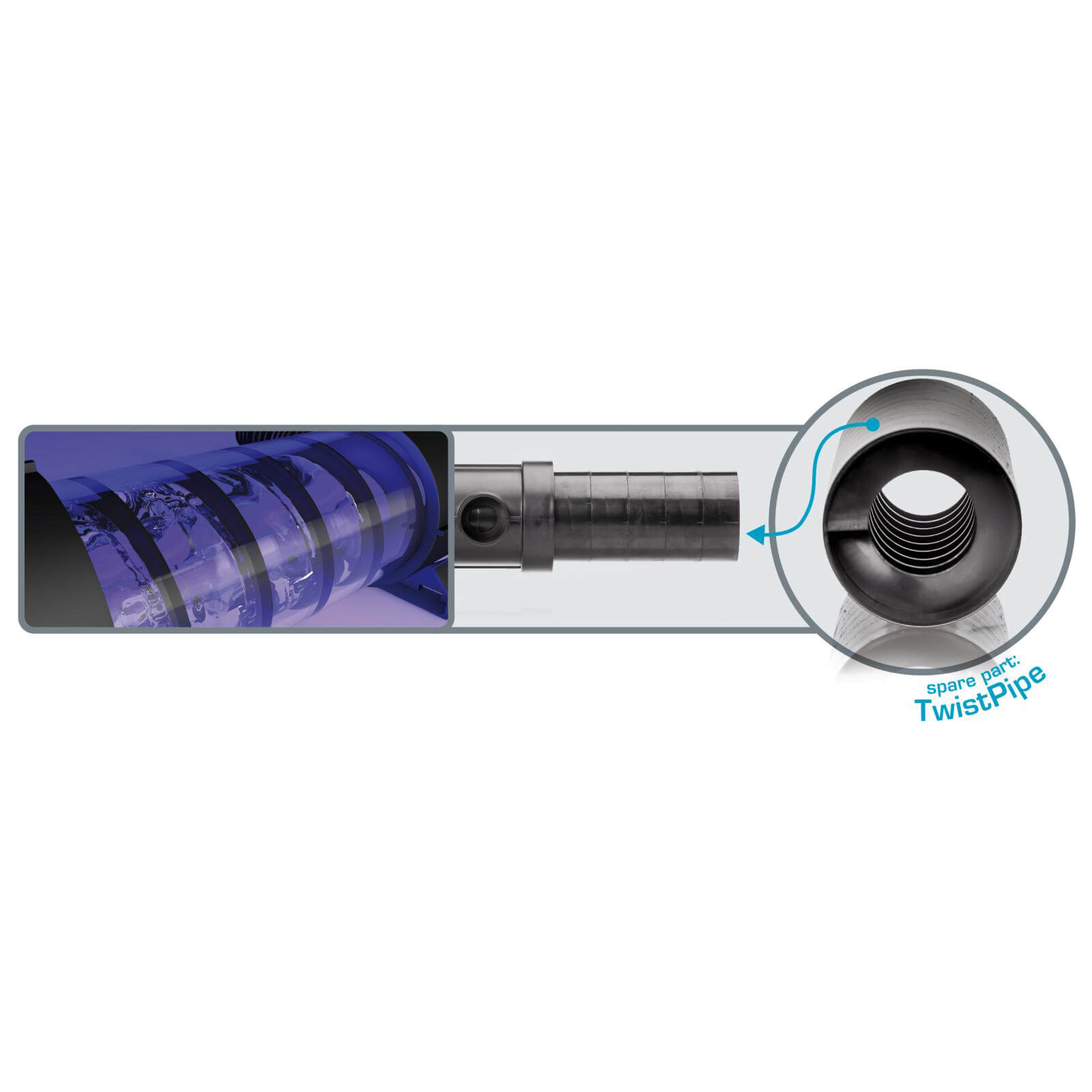

• Spiral Quartz Tube: long UV contact time

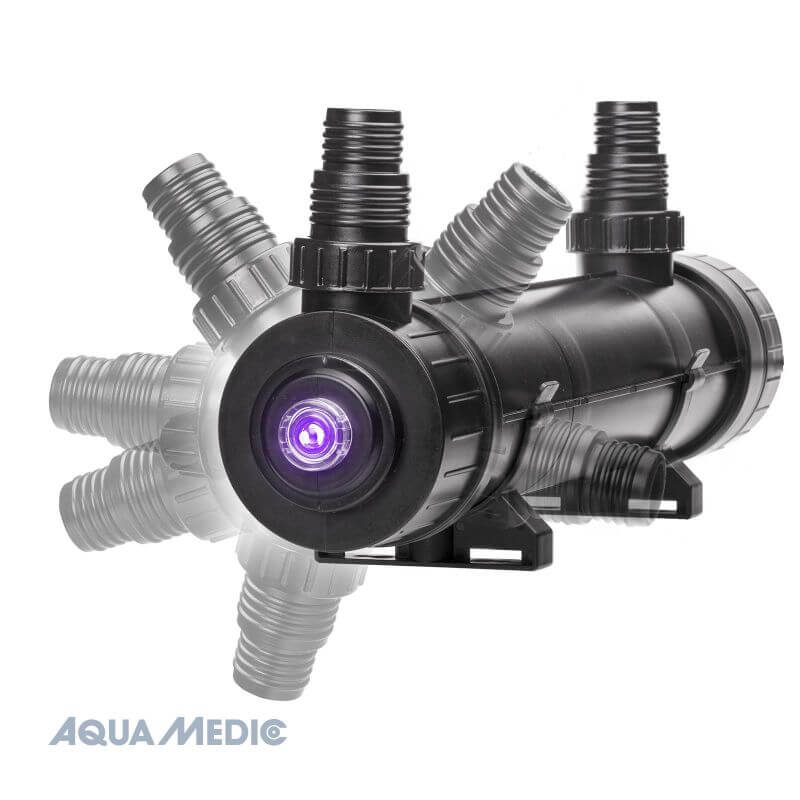

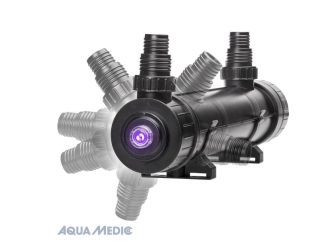

• 360° Swivel Inlet: flexible installation even in confined spaces
• Easy Cleaning: removable internal spiral
• Control Window: safe operation visualization
• High-Frequency Electronic Ballast: better efficiency and increased lamp durability
• Included Fittings: 20 / 25 / 30 / 38 mm
• Power Cable: length 3.5 m

Benefits for Your Installation

The Helix Max 2.0 36 W Sterilizer offers an efficient solution to eliminate suspended algae, bacteria, and pathogens, while reducing the risk of infection and improving water clarity. Ideal for large installations where stability and hygiene are essential.

Technical Specifications

Model: Helix Max 2.0 – 36 W
UV-C Output: 12 W/UVC
Lamp Type: PL-L 36 W
Maximum Pressure: 0.4 bar
Maximum Water Column: 2 m
Connection: 220–240 V / 50–60 Hz
Housing Dimensions: 540 mm x Ø 110 mm (excluding fittings)
Cable Length: 3.5 m
Included Fittings: 20 / 25 / 30 / 38 mm

Usage Tips

Install the sterilizer on a return line or in a bypass. Ensure the flow rate meets the recommendations to guarantee optimal efficiency. Regularly clean the quartz tube and replace the PL-L 36 W lamp every 6 to 12 months.
