Smart ASOV by AutoAqua

(5/5) out of 2 total ratings
Read the reviews

Smart ASOV Anti-Overflow Security for Osmosis System

The Smart ASOV is a security system designed to prevent flooding caused by the overflow of osmosis water tanks. It enables the automatic shutdown of the reverse osmosis system as soon as the defined water level is reached.

This device prevents any unpleasant surprises related to excessive filling of tanks, buckets, or other containers used to store osmosis water.

Automatic and Secure Operation

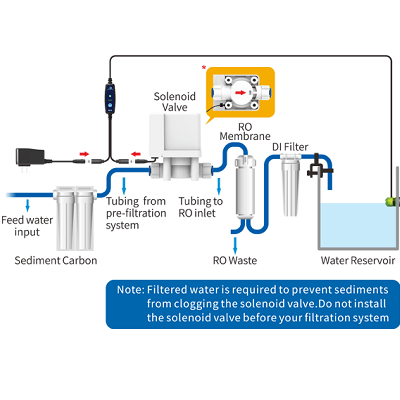

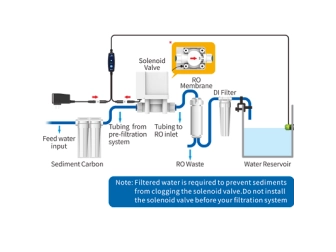

The Smart ASOV comes with an electronic solenoid valve that is placed directly on the output of the reverse osmosis system. When the water level detected by the optical sensor is reached, the solenoid valve immediately cuts off the water supply.

The system uses a patented double magnetic optical sensor, fixed at the desired level of the tank. This technology requires no drilling and does not rely on a mechanical float valve, thus reducing the risk of failure.

Simple Installation

Installing the Smart ASOV takes just a few seconds. The optical sensor can be positioned on different types of containers without modifying them. The solenoid valve connects directly to a standard osmosis system hose.

Technical Specifications

Power Supply: 100 to 240 VAC / 50-60 Hz.

Power adapter cable length: 180 cm.

Solenoid valve consumption: 6 W at 12 V.

Osmosis hose fitting: 1/4 inch.

Maximum sensor mounting thickness: 12.7 mm.

Maximum mounting thickness for RO tube holder: 30.5 mm.

Cable length between sensor and controller: 300 cm.

Solenoid valve cable length: 120 cm.
