The Mini Bubble King 200 Extra Slim VS is an internal skimmer developed by Royal Exclusiv for reef aquariums up to 1000 liters. Its compact design and Red Dragon X pump allow for efficient extraction of dissolved organic compounds while maintaining a reduced footprint in the sump.
Recommended aquarium: up to 1000 L
Maximum air intake: 1500 L/h
Maximum water flow: 4000 L/h
Pump: Red Dragon X 24V
Power: 15 to 50 W
Skimmer base: 22 cm x 22 cm
Total height: approximately 56 cm
Weight: 7.1 kg including pump and controller
| Feature | Value |
|---|---|
| Model | Mini Bubble King 200 Extra Slim VS |
| Skimmer Type | Internal |
| Pump | Red Dragon X 24V |
| Air Intake | max. 1500 L/h |
| Water Flow | max. 4000 L/h |
| Power | 15 to 50 W |
| Supply Voltage | 230 V / 50 Hz (also available in 110 V / 60 Hz) |
| Technology | 24 V DC |
| Pump Protection Rating | IP68 |
| Controller Protection Rating | IP66 |
| Parameter | Value |
|---|---|
| Minimum Level | 130 mm |
| Maximum Level | 300 mm |
| Element | Dimensions |
|---|---|

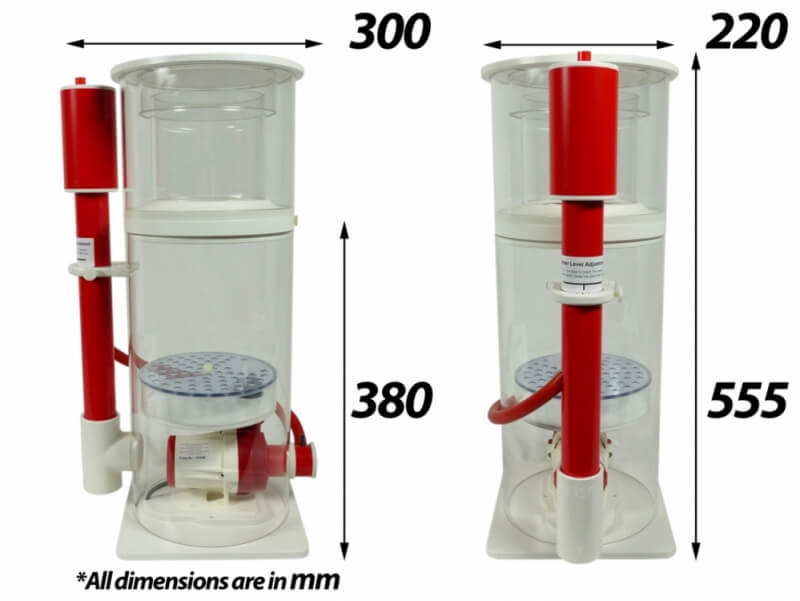

| Skimmer | 300 mm width / 220 mm length / 555 mm height |
| Suction Height | 70 mm (center) |
| Feature | Value |
|---|---|
| Maximum Power | 50 W |
| Adjustment Range | 15 to 50 W |
| Motor Type | Adjustable DC brushless pump |
| Input | Nozzle with air and ozone connection |
| Output | Reduction ring Ø 32 mm |
| Air Intake | max. 1500 L/h |
| Water Flow | max. 4000 L/h |
| Pump Weight | 2.3 kg |
| Element | Dimensions |
|---|---|
| Pump | 110 mm width / 190 mm length / 150 mm height |
| Controller | 20 mm width / 90 mm length / 170 mm height |
The Mini Bubble King 200 Extra Slim VS is designed to be installed in the sump. A water level between 130 mm and 300 mm is recommended to ensure optimal skimmer performance.
Mini Bubble King 200 Extra Slim VS Skimmer
Red Dragon X Pump
Electronic Controller
Power Supply
Connection Cables
User Manual
Regular cleaning of the pump, needle wheel, and air intake helps maintain skimmer performance and prevents the accumulation of limescale deposits.
