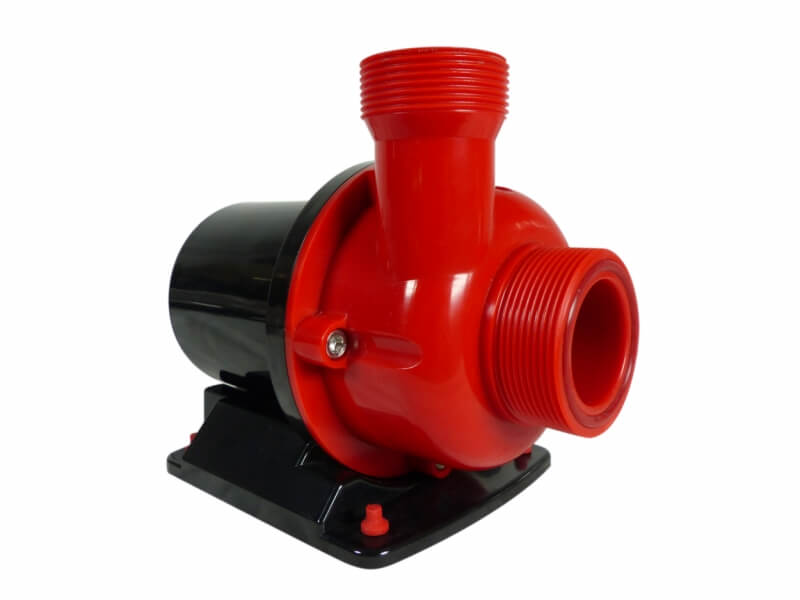

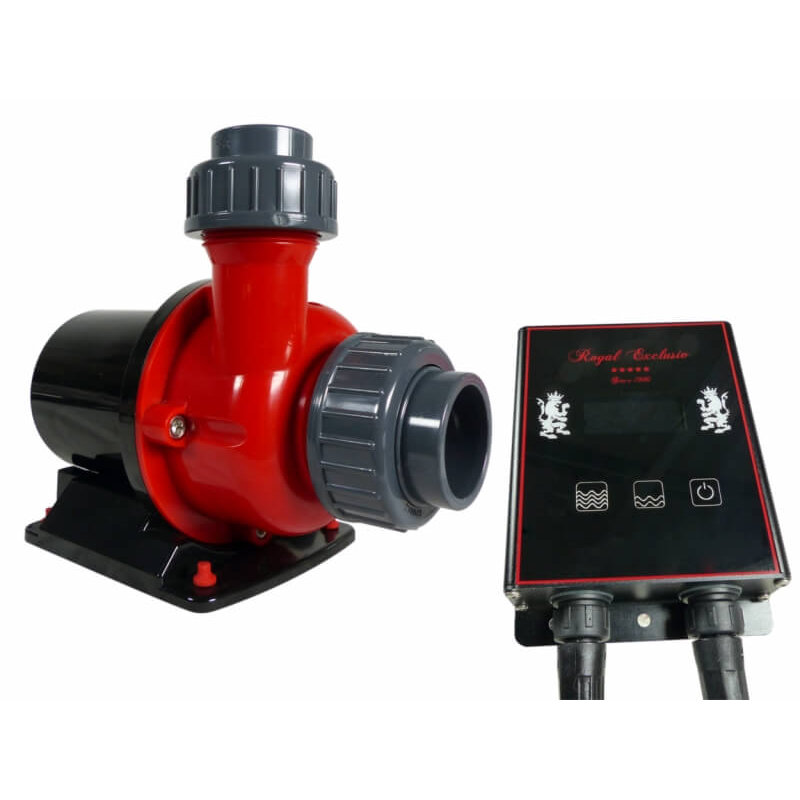

The Red Dragon 5 ECO 130 W is an adjustable DC pump developed by Royal Exclusiv to provide powerful circulation or water return in large-capacity reef and marine systems.
Maximum power: 130 W
Maximum flow rate: 11 m³/h (3000 GPH)

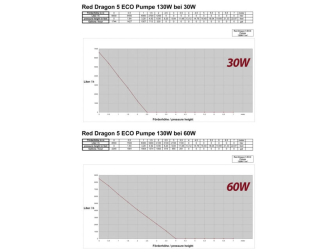

Maximum head height: 6.9 m
Technology: adjustable brushless DC motor
Power adjustment: in 2 W increments
Adjustment range: 2 W to 130 W

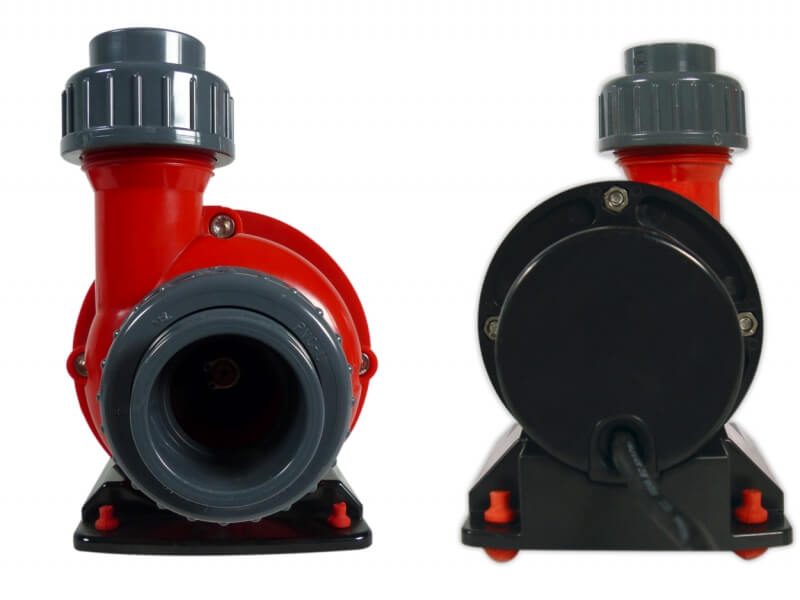

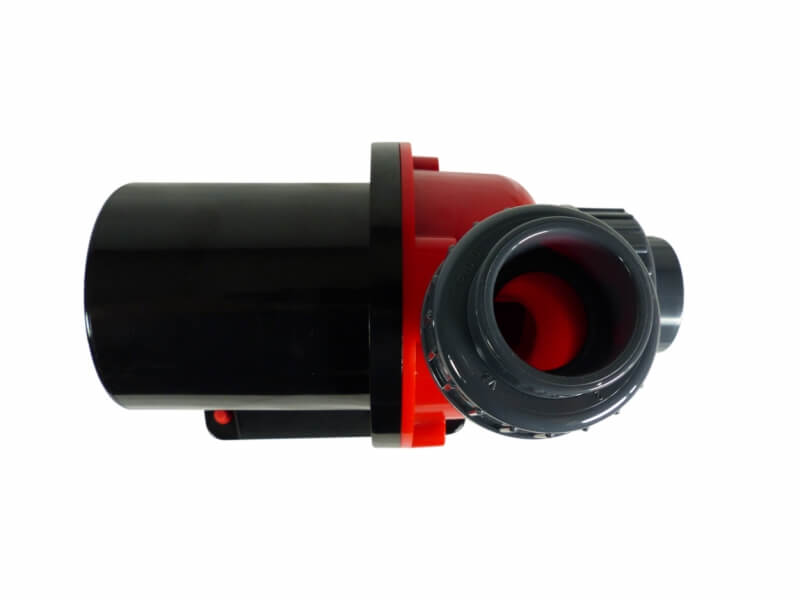

Inlet: 40 mm (1.25")
Outlet: 32 mm (1")
| Feature | Value |
|---|---|
| Model | Red Dragon 5 ECO 130 W |
| Maximum flow rate | 11.0 m³/h (3000 GPH) |
| Head height | 6.9 m |
| Maximum power | 130 W |
| Power adjustment | in 2 W increments (2 W to 130 W) |
| Power supply voltage | 100–240 V |
| Frequency | 50–60 Hz |
| Technology | 24 V DC |
| Pump protection rating | IP68 |
| Controller protection rating | IP66 |
| Pump weight without controller | 3.5 kg |
| Element | Dimensions |
|---|---|
| Pump | 130 mm width / 230 mm length / 190 mm height |
| Controller | 50 mm width / 100 mm length / 190 mm height |
| Height of suction side | 75 mm (center) |

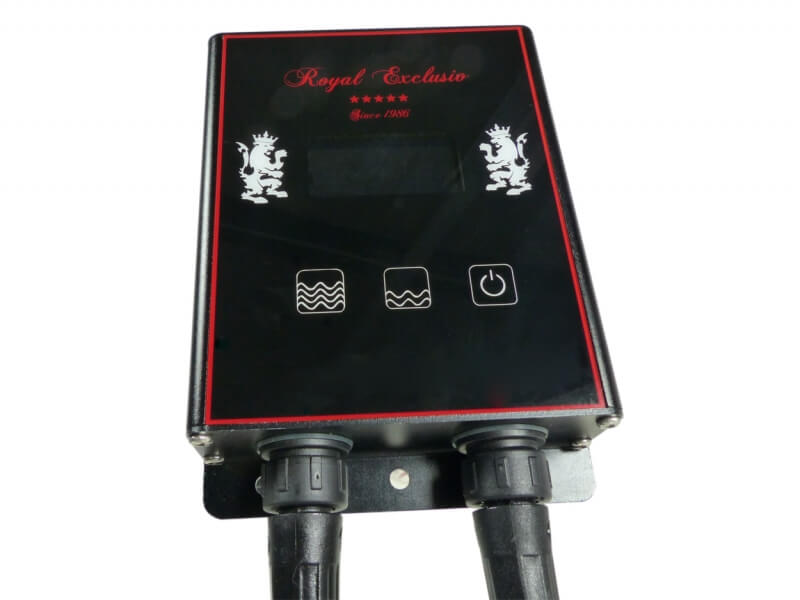

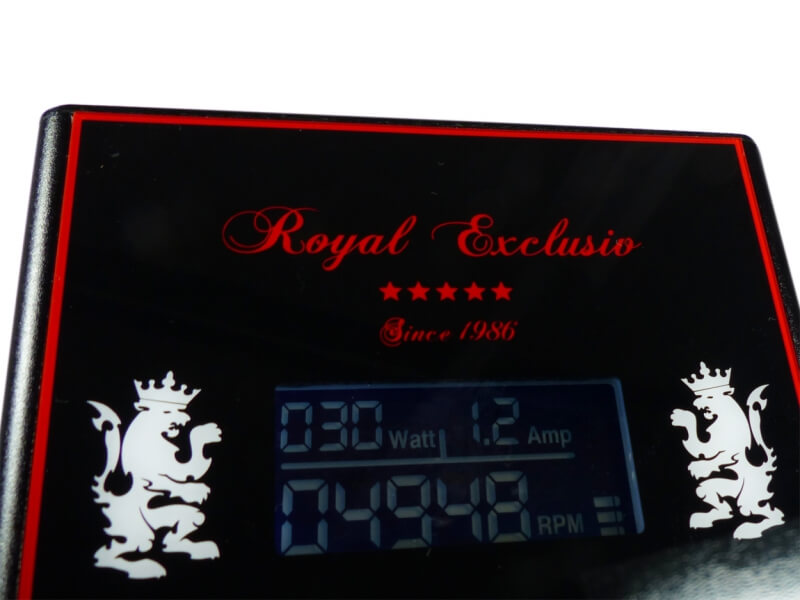

The Red Dragon 5 ECO uses a brushless DC motor allowing for silent operation and precise flow regulation. The electronic controller displays the power consumption as well as the pump's rotation speed.

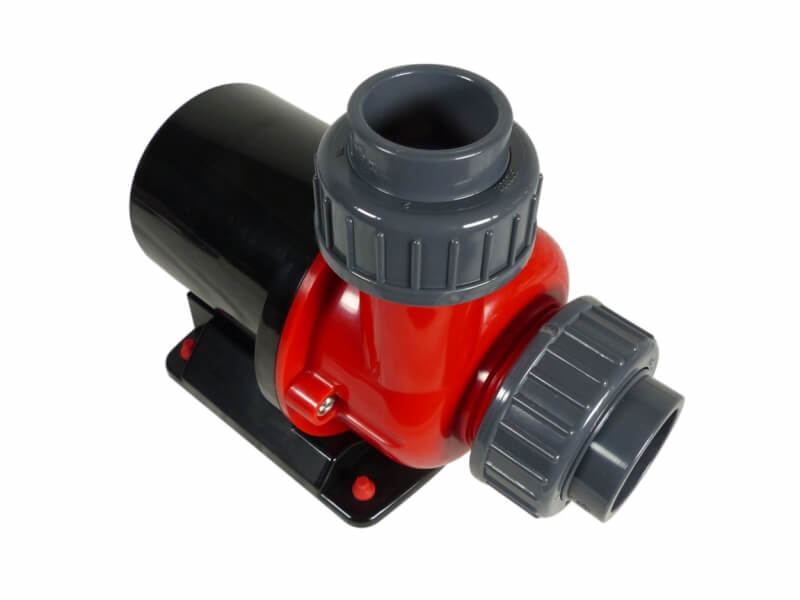

The pump can be used for circulation or water return in reef aquariums. It features a 40 mm inlet and a 32 mm outlet for easy integration into technical setups.

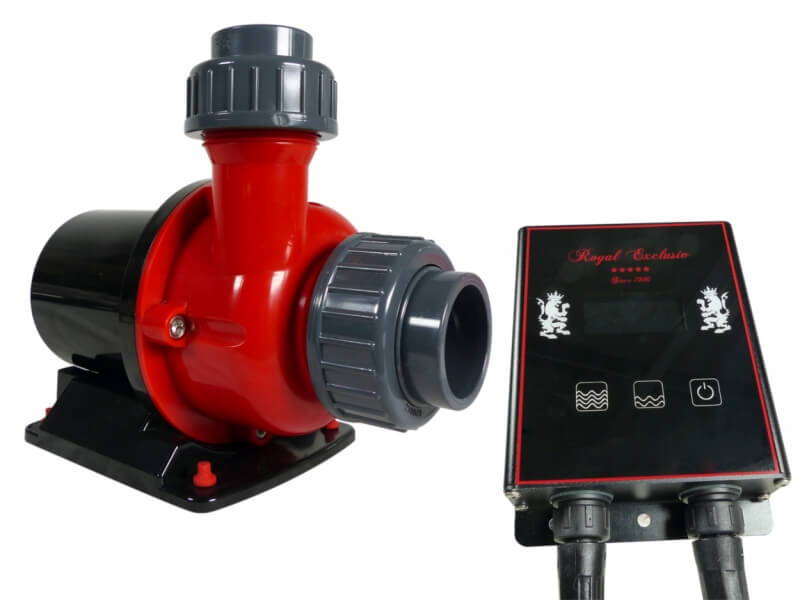

Red Dragon 5 ECO 130 W pump
Electronic controller
Power supply unit
Connection cables
User manual
Regular cleaning of the rotor and pump body helps maintain performance and prevent the buildup of lime deposits.
