JBL PROFLORA CO2 REGULATOR ADVANCED r

JBL ProFlora CO2 Regulator Advanced – CO2 Regulator with Dual Gauge

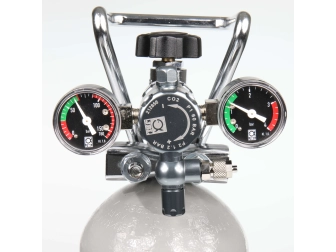

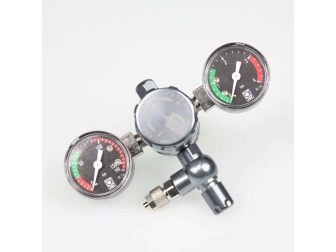

The JBL ProFlora CO2 Regulator Advanced is a high-precision regulator designed to control the supply of carbon dioxide in planted aquariums. It allows simultaneous visual monitoring of the cylinder pressure and working pressure.

Operation

The regulator reduces the cylinder pressure, which can reach about 60 bars, to a low and stable working pressure of 1.5 bar. The cylinder pressure is displayed on the first gauge, while the working pressure is shown on the second.

CO2 Supply Adjustment

The CO2 flow rate is adjusted using the integrated needle valve, allowing precise and consistent tuning.

Cylinder Compatibility

The JBL ProFlora CO2 Regulator Advanced is compatible with:

– Refillable CO2 cylinders (system M, thread W21.8 x 1/14)
– Disposable CO2 cylinders (system U, thread M10 x 1)

Switching from one system to another is done by unscrewing the knurled nut W21.8 x 1/14 with an Allen key, allowing adaptation to the M10 x 1 thread.

Design and Materials

The regulator is made of anodized aluminum with high-precision CNC machining. Its titanium color finish ensures robustness and durability. Sealing is secured by a reliable sealing washer used instead of an O-ring.

Technical Data

Package Contents

1 JBL ProFlora CO2 Regulator Advanced with two gauges,
detachable adapter for disposable CO2 cylinders included.
